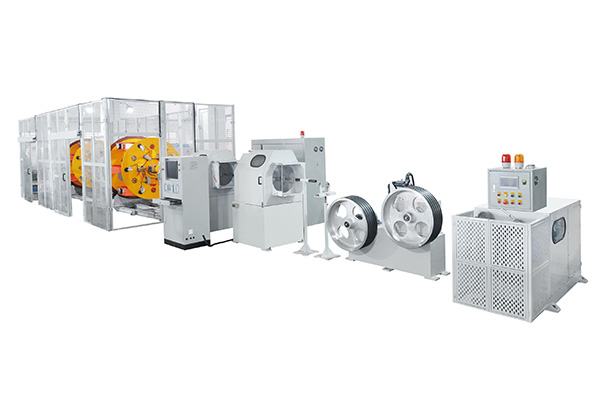

This equipment is for manufacturing high quality control cable, EV cable, new source of charging pile cable, data cable (USB3.1,Type-C,HDMI2.0,SFP,QSFP) and optical cable
stranding and other multi-strand cable for stranding, and so on .
|
Model |
200-300/6+12+18 |
400-500/6+12+18 |
630/6+12 |
|
Inlet wire dia.(mm) |
φ0.4-φ4.0 |
φ0.8-φ5.0 |
φ0.8-φ6.0 |
|
Outlet wire dia.(mm) |
φ20(MAX) |
φ25(MAX) |
φ50(MAX) |
|
Stranding cage RPM(rpm/min) |
20~170 |
20~120 |
20~100 |
|
line speed(m/min) |
1~30 |
1~30 |
1~30 |
|
Cabling pitch(mm) |
40~400 |
40~400 |
40~600 |
|
Taping pitch(mm) |
3~60 |
3~60 |
3~80 |
|
Taping bobbin(rpm/min) |
20~1300 |
20~1300 |
20~1300 |
|
Payoff bobbin dia.(mm) |
φ200*160 |
φ400(φ500)*300 |
φ300*375 |
|
Take up bobbin dia.(mm) |
φ400~φ630 |
φ1000~φ1600 |
φ1000~φ2000 |
|
Center payoff bobbin dia.(mm) |
φ200~φ400 |
φ400~φ630 |
φ400~φ630 |
It refers to the advanced cabler technologyat home and abroad, combines with the wire
and cable manufacturing situation in China and redesign. It is composed of payoff, stranding cage, wire gathering device, taping machine, meter counter, capstan, electrical control box etc.
This machine adopts PLC program control, use frequency conversion motor controller
makes output shaft rotating speed constant. There are hydraulic driver and electromagnet brake makes machine stops steadily and rapidly. Take up and traverse device adopts bobbin traversing type take up. Motor starts operating before main stranding cage starts
running conversely, motor stops after stranding cage stops so as to meet the requirement of cable manufacturing process.
