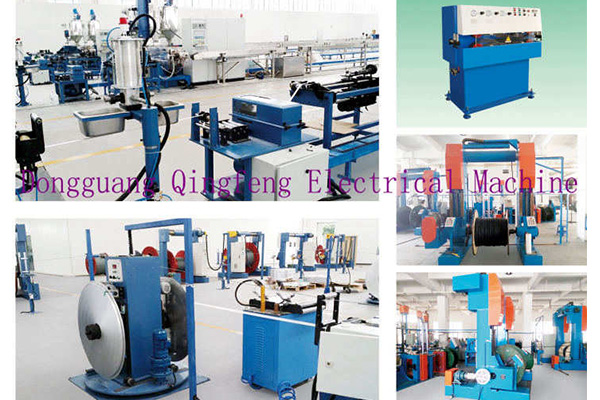

Optical cable sheathing line is used for extruding various cable out sheath. Extrusion materials : LDPE,MDPE, HDPE and LSZH etc.
Extruder model:90/120 Extruder (According cable spec)
Max line speed: 80M/Min
Diameter of finished cable:90 Extruder: Φ7-30MM;120 Extruder: Φ8-60MM
Extrusion capacity:90 Extruder: 280kg/h;
120 Extruder:360kg/h
Size of pay off reel: PN1000-2000
Size of take up reel: PN1000-PN2000( or PN1500-PN3150)
(1) Portal type rail traversing active pay off;
(2) Pay off tension controller;
(3) Steel-aluminum belt pay off (or steel wire armored);
(4) Steel-aluminum belt mash welder ;
(5) Steel-aluminum belt storage device;
(6) Steel-aluminum belt corrugators ;
(7) Grease filler;
(8) Steel-aluminum belt longitudinal tube forming device ;
(9)Non-woven tape pays off device ( optional);
(10)90/120 extruder（with feeding and drying device）;
(11)Electric control cabinet;
(12)Thermostatic trough;
(13) Chilled-water trough;
(14)Air wiper dyer (without air blower);
(15) Diameter gauge tester;
(16) Heating mark printer;
(17)Spark tester;
(18)Caterpillar type capstan;
(19)Take up tension rack;
(20) Portal type rail traversing take up device.
